Electric wheelbarrow - mini dumper
Mini dumper
Maximum payload: 650 kg
Power: 6.8 kW (9.2 hp)
Includes passenger platform and counterweights
Large tipping body with increased capacity
Excellent starting performance (one pull and the engine starts!)

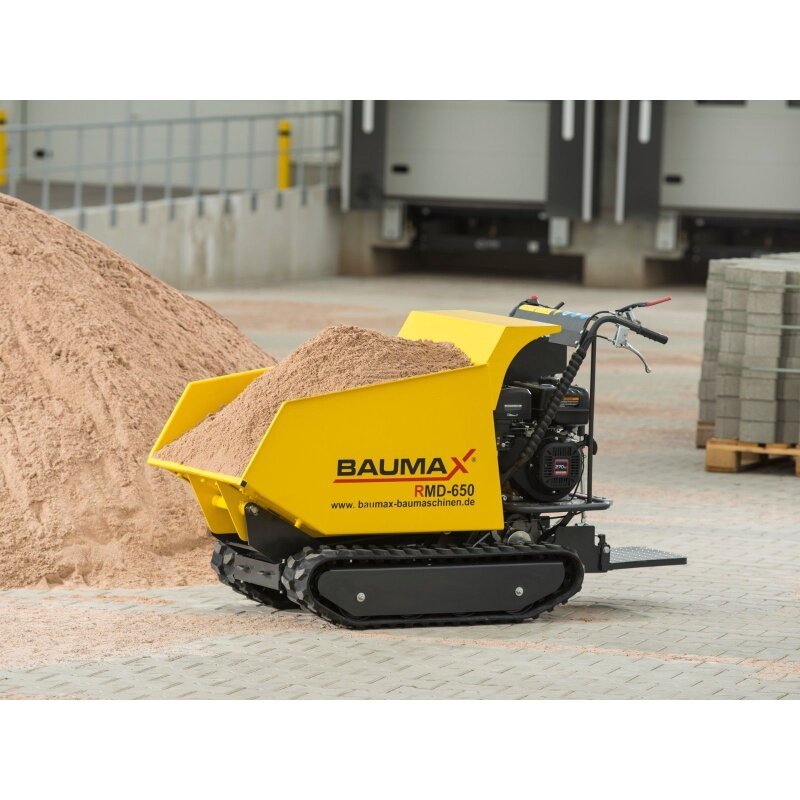

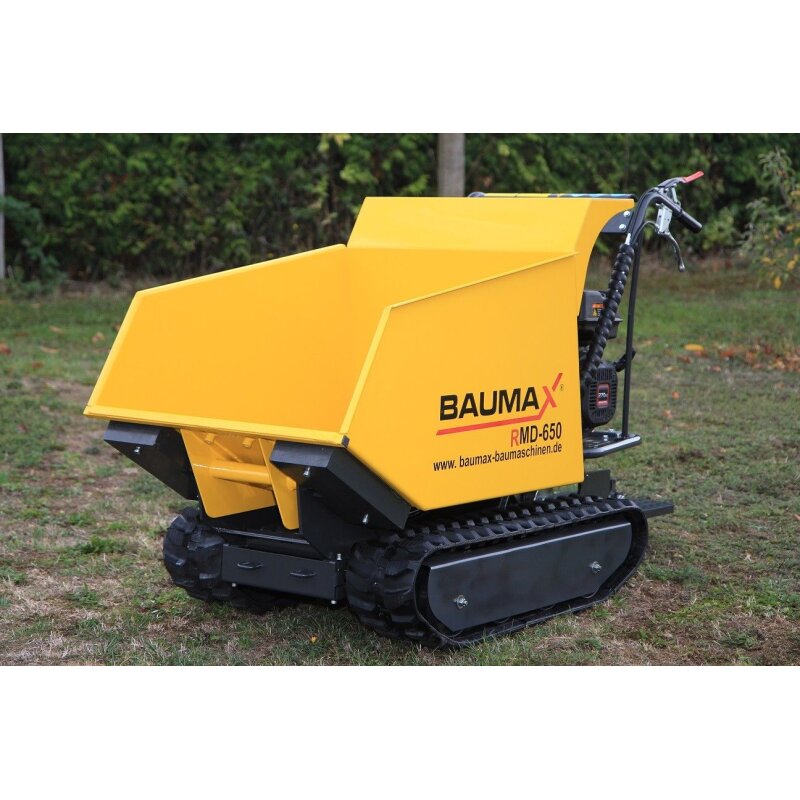

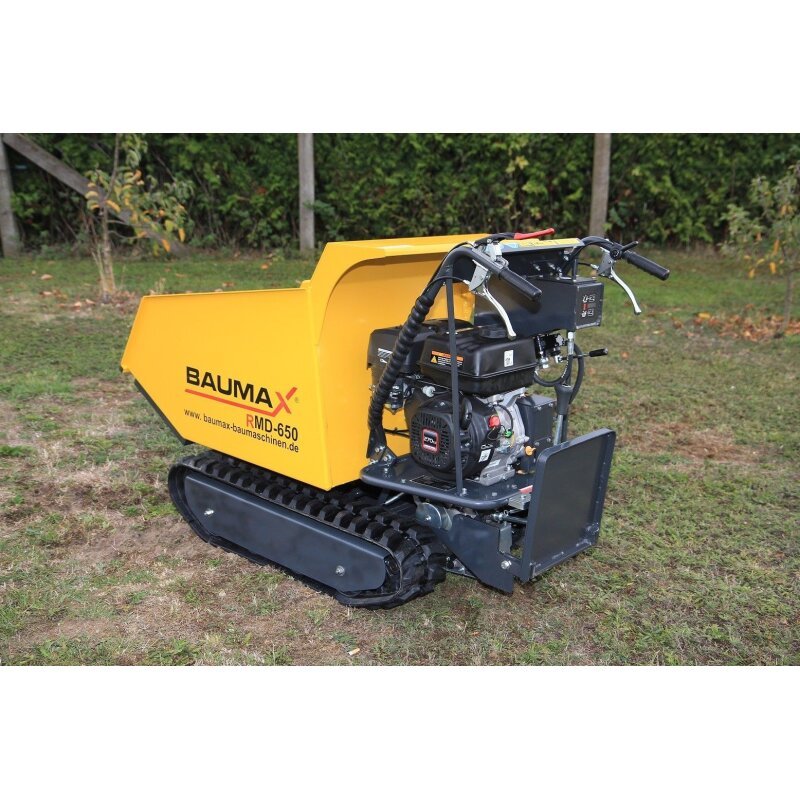

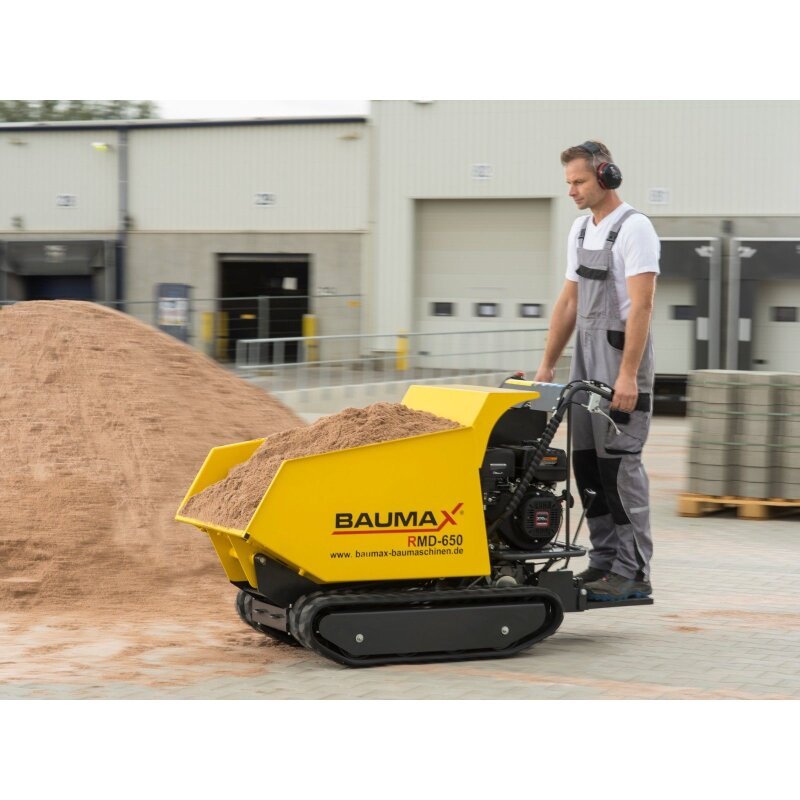

Mini Dumper BAUMAX RMD650 Tracked Dumper Crawler Dumper including Riding Platform
The BAUMAX RMD650 is the result of the further development of its predecessor, the RMD500. From the frame to the hydraulic cylinders and the tipping skip, almost everything has been reinforced to meet the demands of higher payloads and the toughest operating conditions. Unique in this segment, the BAUMAX® RMD650 effortlessly empties a skip fully loaded with concrete (heaped), even on inclines. Most competitors' tracked dumpers can't even tip their stated payload in a horizontal position, let alone on inclines. This is particularly important for demolition waste disposal, for example, when tipping onto ramps into a container, or for excavation or bulk material transport. Only this feature makes it possible, for example, to completely empty the skip onto a large pile. Most tracked dumpers only have tipping angles of less than 90°, which means that the skip cannot be completely emptied on inclines, and manual assistance with a shovel is required. The loading and lashing options have also been improved during the development process. The RMD650 now features strong lashing eyes, allowing for easy and quick securing on a trailer or flatbed. The levers for the clutch and steering on the RMD650 are robustly made of metal. The Bowden cables have also been reinforced.
Features / Special Features
In this offer: incl. riding platform and counterweights

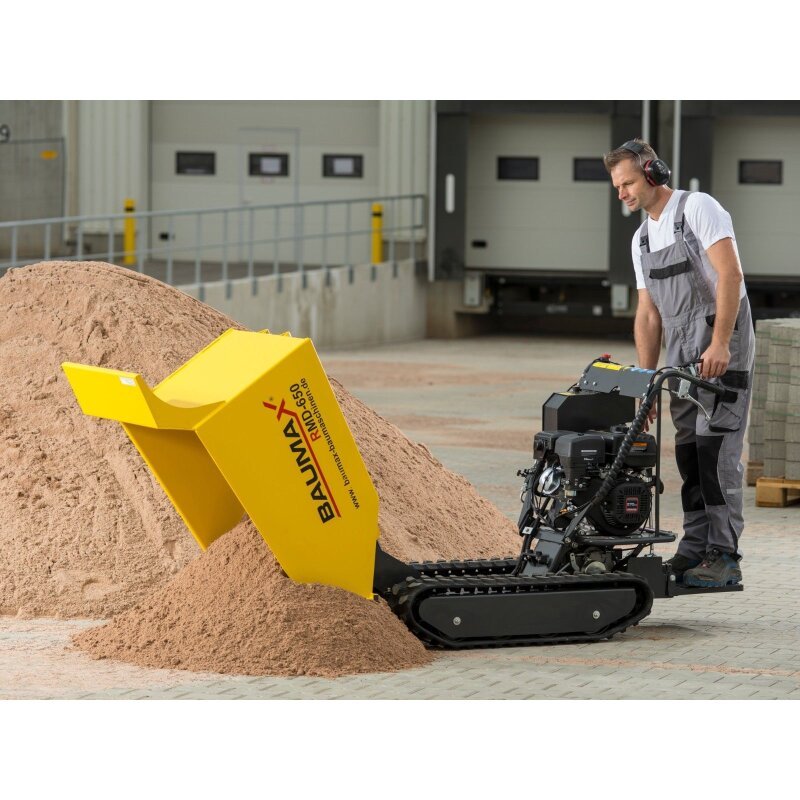

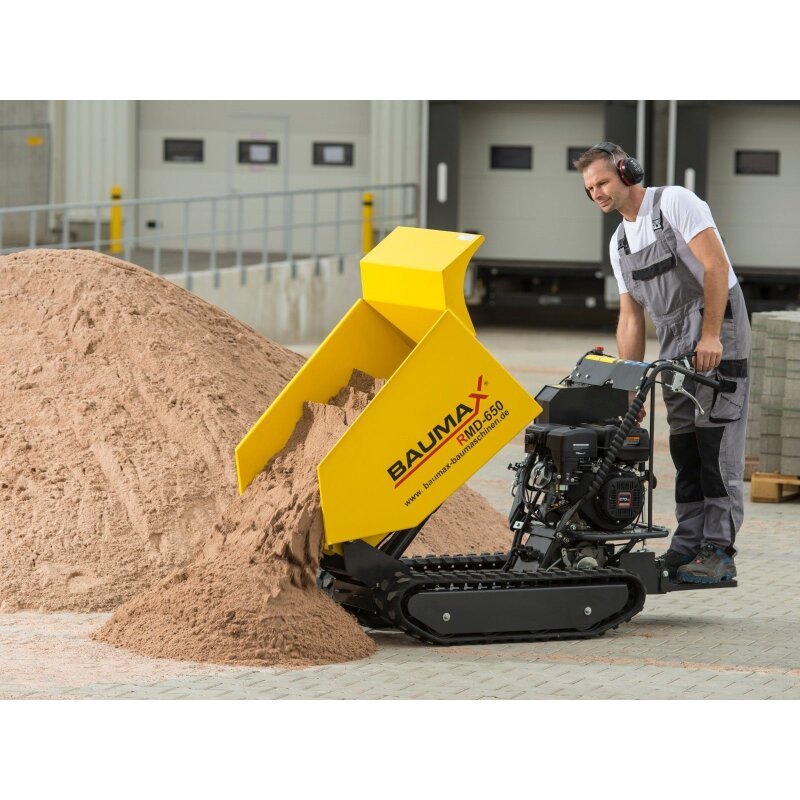

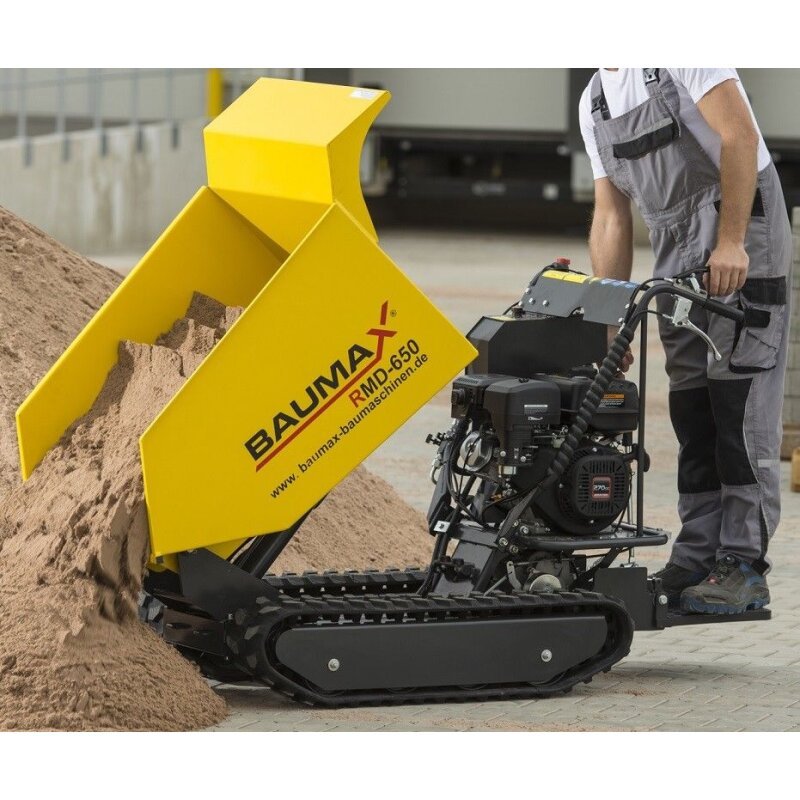

Particularly large tipping angle of 110° (unique on the market!) for complete emptying of the skip!
Large tipping skip with increased capacity

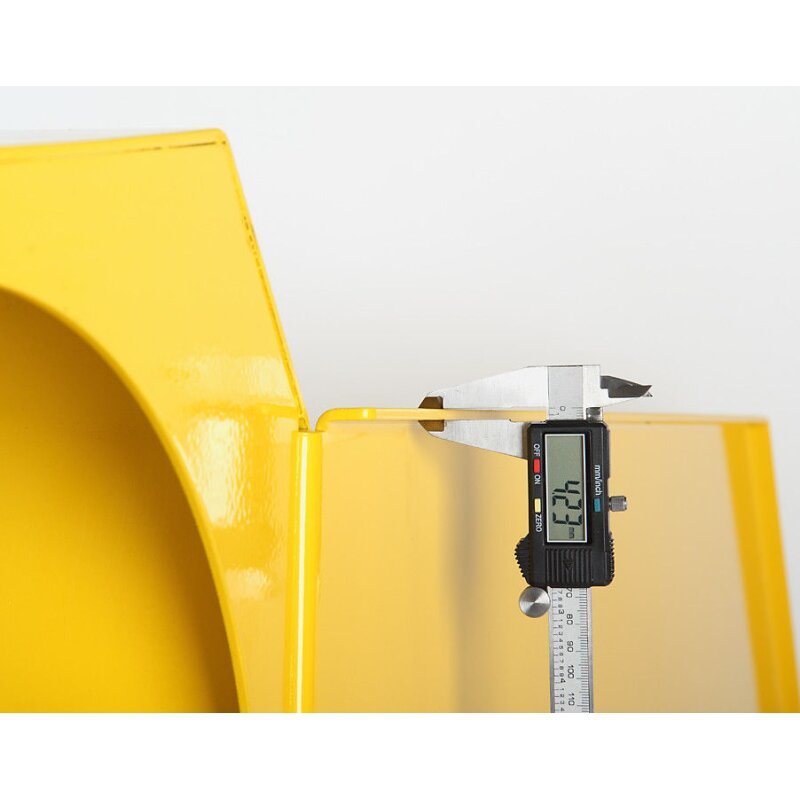

Particularly thick-walled tipping skip made of 4 mm steel, straight outlet (not tapered at the sides)! Super-sensitive lifting and lowering of the tipping skip, even with a load! (Tipping skip lowering speed is manually adjustable via a separate hydraulic valve!)
Reinforced hydraulic cylinder and hydraulic pump
Extra-large hydraulic oil tank with oil filter (for tipping without drawing in air, even on inclines, and lower oil temperature)!
NEW: Asymmetrical lug profile on the rubber tracks for smoother operation with less vibration
NEW: Steering brake lever holders made of solid sheet steel, no plastic

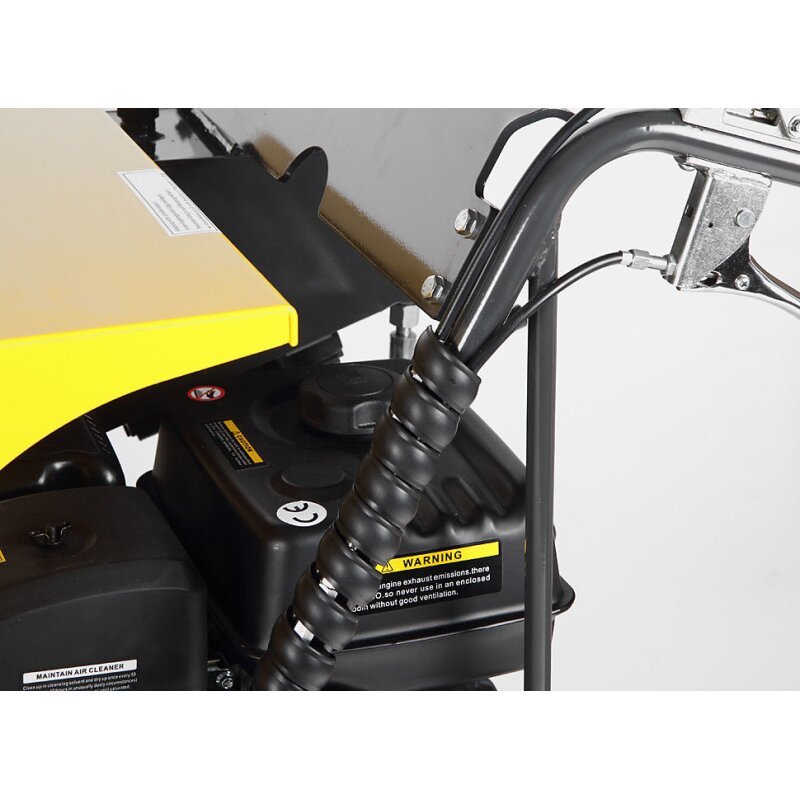

NEW: Additional protection for the Bowden cables with extra-sturdy impact and abrasion protection
Reinforced frame and chassis for demanding operating conditions!

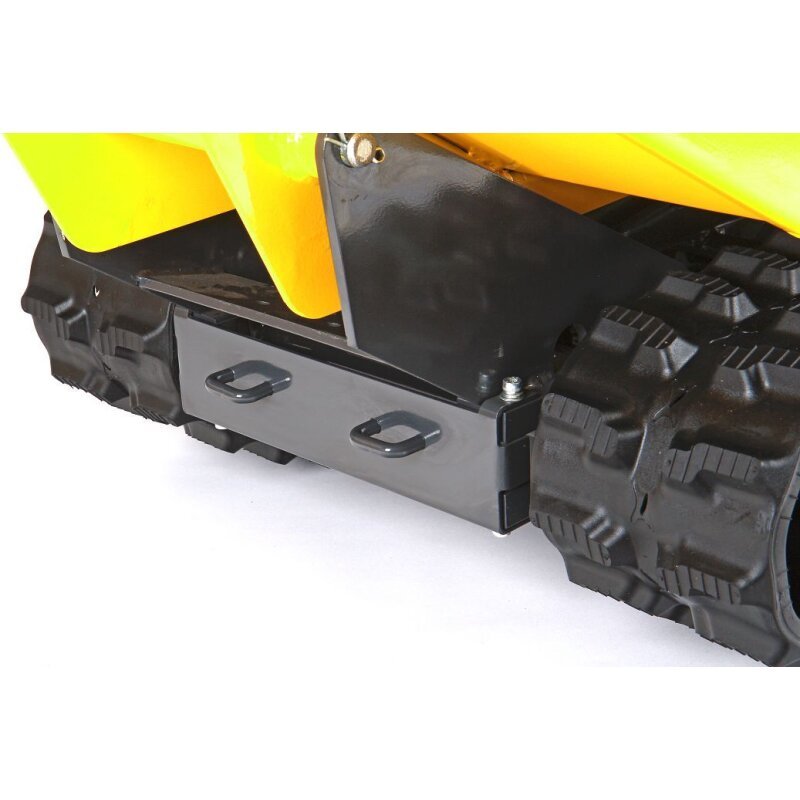

Sturdy lashing eyes at the front and rear for safe and easy transport
Ergonomic handle height
Powerful, durable mass-produced engine with a cast iron cylinder liner
Excellent starting behavior (one pull and the engine starts)!
Automatic engine shut-off in case of low engine oil level
Brake: automatic drum brake
Empty weight (kg): 363
Driving speed: 5 km/h
Displacement: 302 cm³
Tipping mechanism: hydraulic
Tipping angle of the skip: 110°
Fuel: Gasoline
Fuel capacity: 5.5 l
Curb weight: 360 kg
Power: 6.8 kW (9.2 hp)
Brand: BAUMAX
Dimensions LxWxH (mm): 1670x730x1100
Engine: Single-cylinder 4-stroke, gasoline, air-cooled, OHV
Skip capacity (heaped): 320 l
Skip capacity (struck): 270 l
Payload (kg): 650
Skip lowering speed: continuously adjustable, very smooth lowering of the skip!
Starting system: Recoil starter
Gearbox: 3 forward gears, 1 reverse gear
Electric wheelbarrow
Maximum payload 550 kg
Extra-large tipping angle of 110°
Reinforced drive motors (2 x 1000 W)
Integrated charger
Charging cable with CEE plug and 5m rubber cable stored in the machine
1 x LED front headlight
1 x LED top headlight
16x6.50-8 tires with all-terrain tread
Rider platform included as standard
Handlebar height adjustable without tools

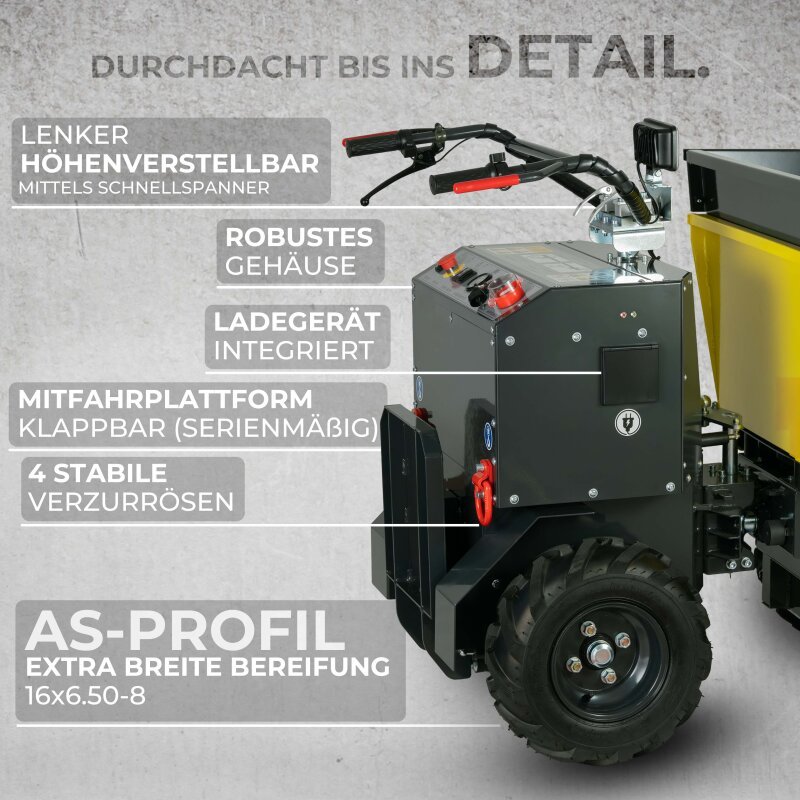

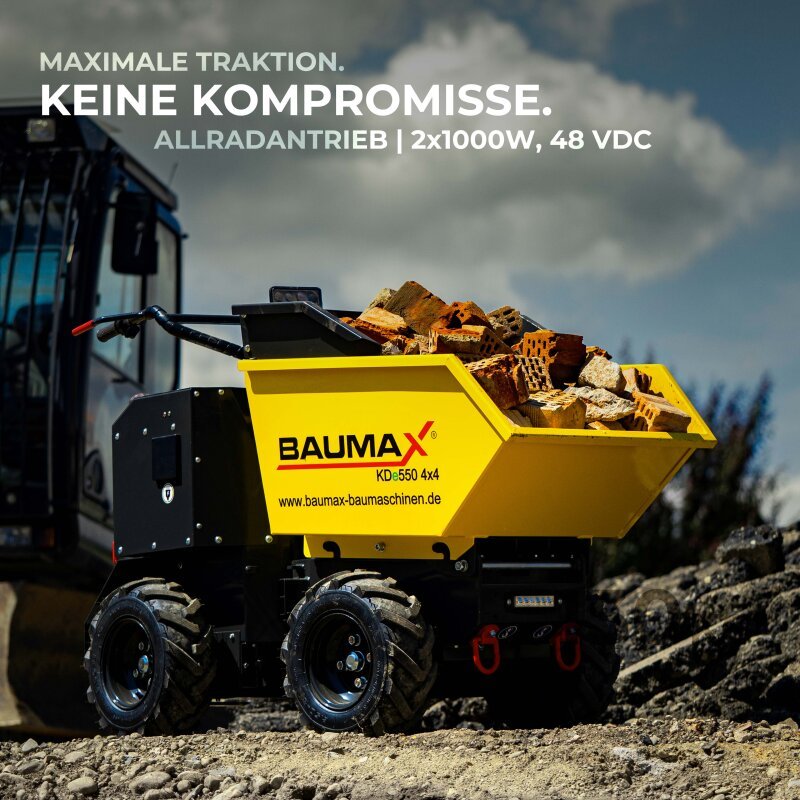

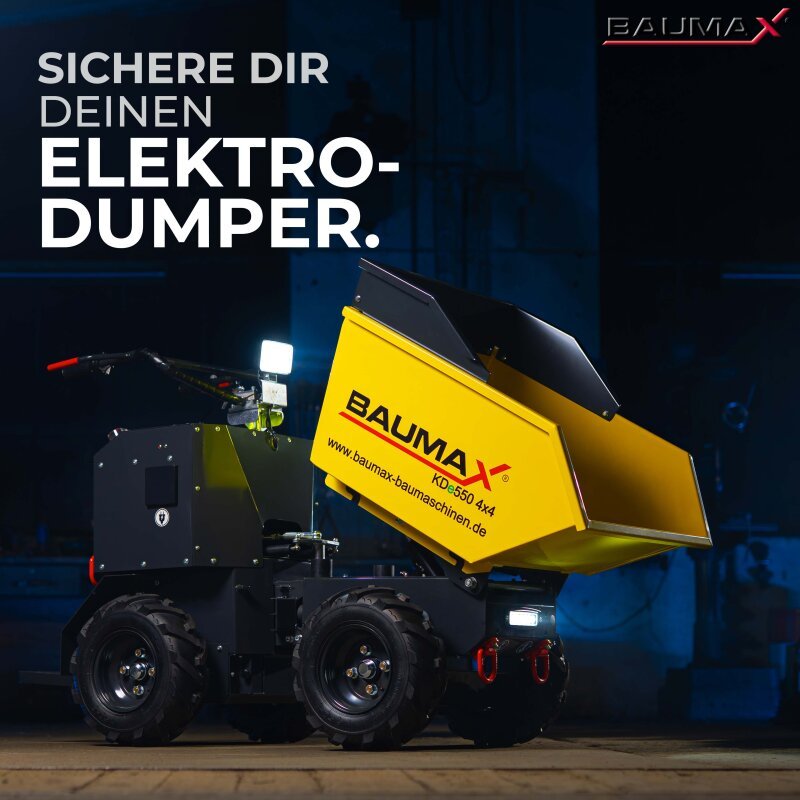

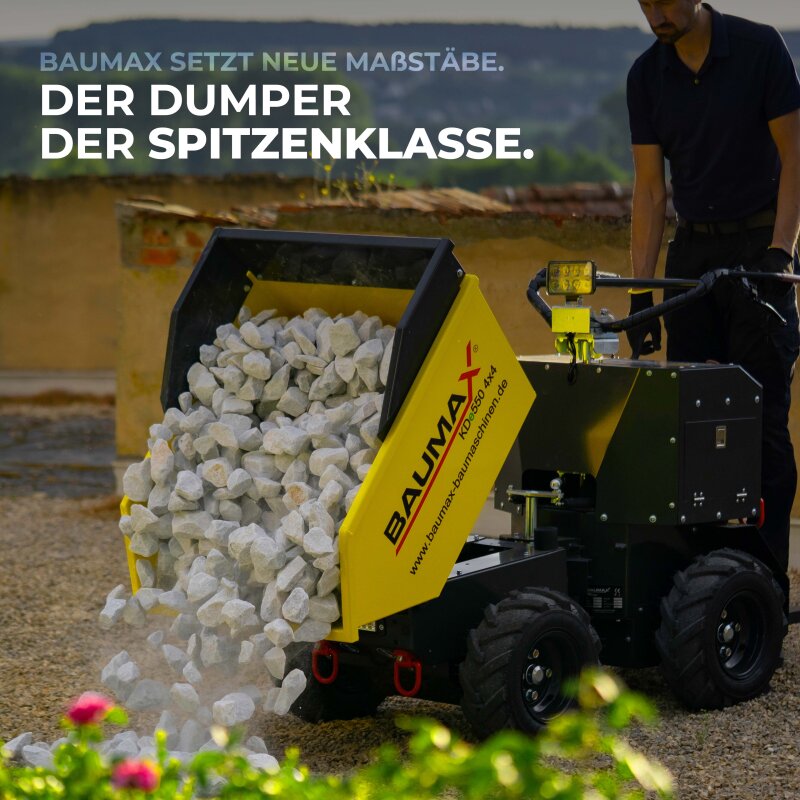

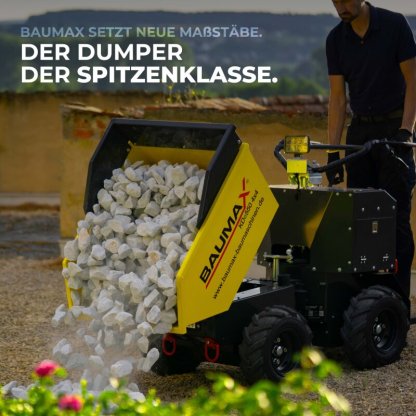

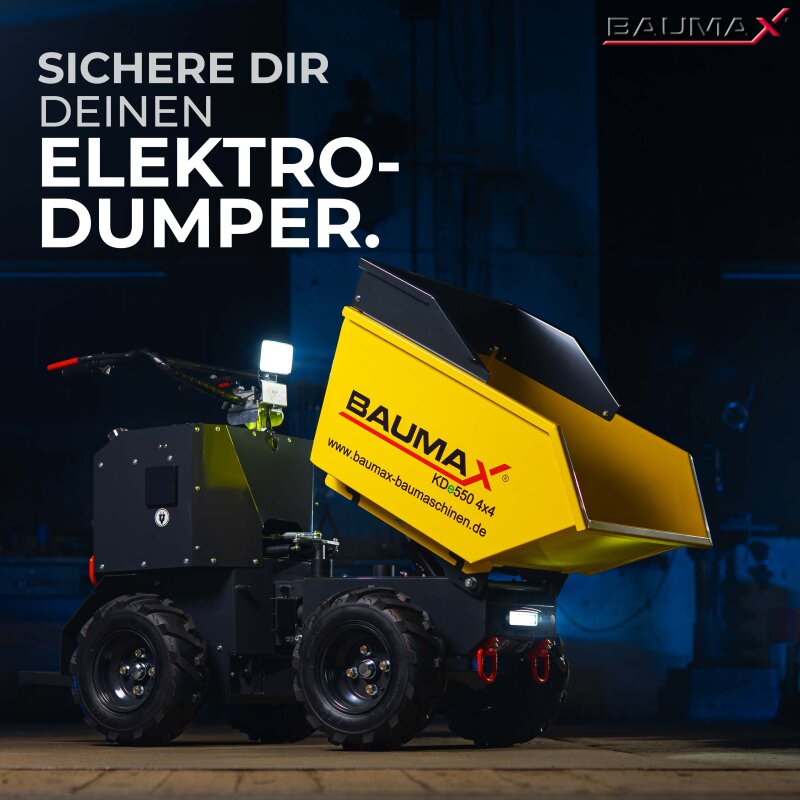

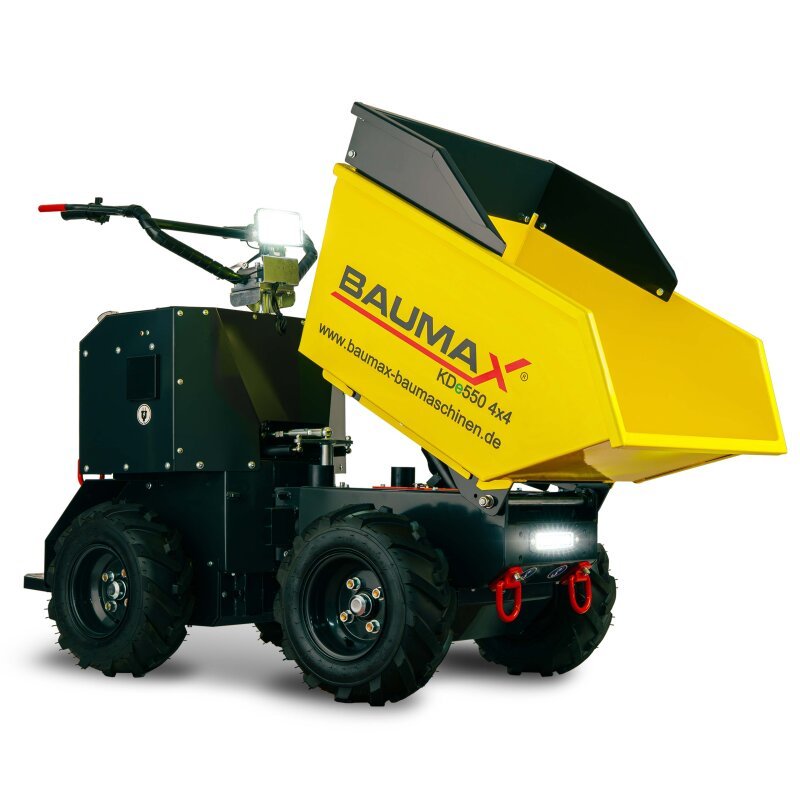

Electric Wheelbarrow/Dumper KDe550 4x4, Motorized Wheelbarrow, Dumper
What makes the BAUMAX KDe550 4x4 better?
Excellent off-road capabilities thanks to its all-wheel drive and very good axle articulation
Extra-wide 16x6.50-8 tires with all-terrain tread

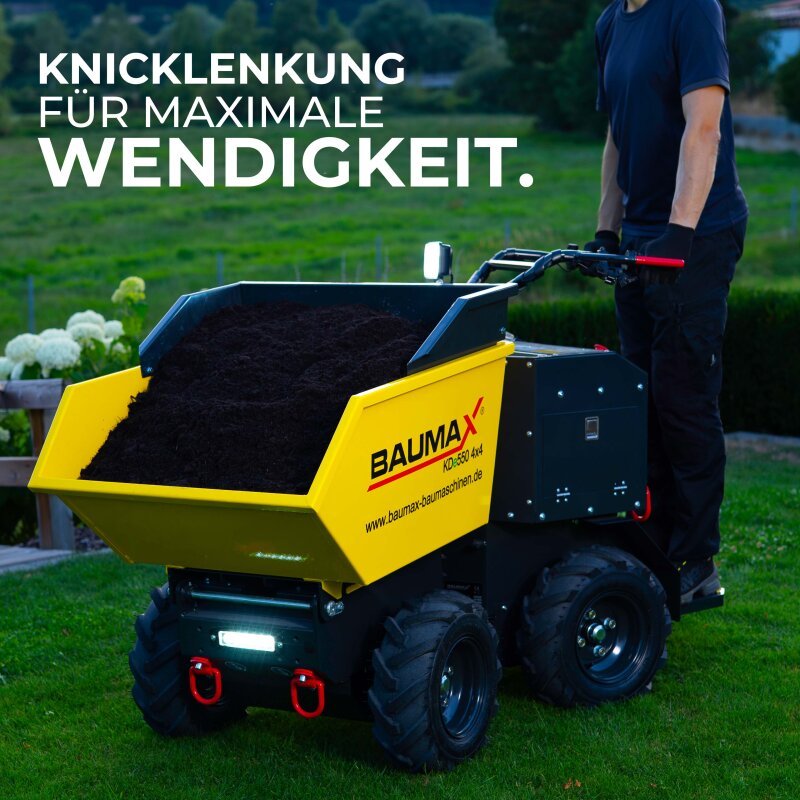

Very high maneuverability and small turning radius due to articulated steering

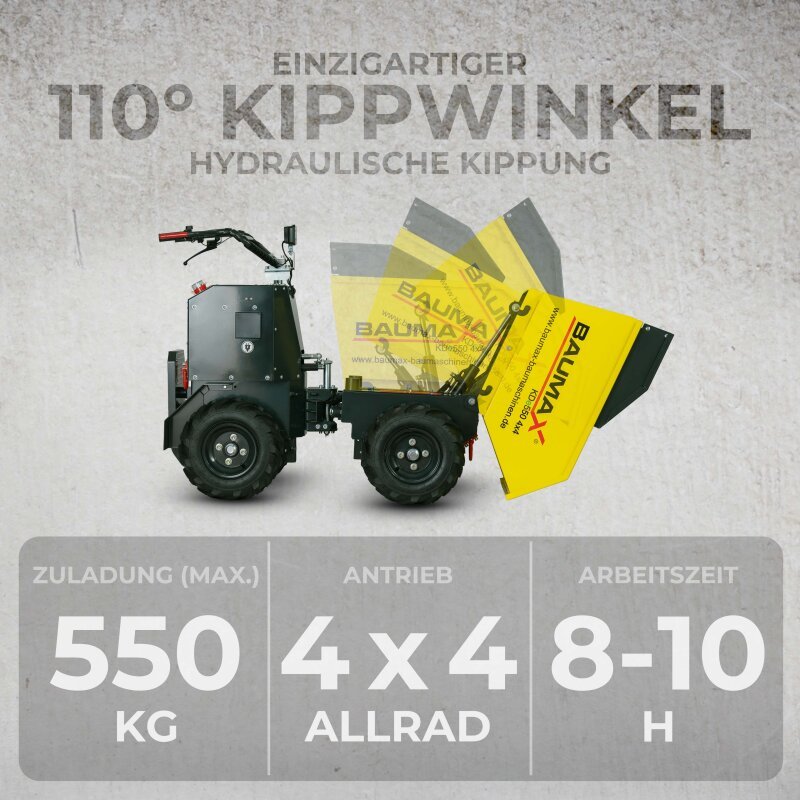

Particularly large tipping angle of 110° allows for complete emptying of the skip even on inclines, unique in this segment
Double the battery capacity of comparable devices
Completely assembled
Tool-free height-adjustable handlebars
Electromagnetic brake on front and rear axles
Integrated charger (cannot be lost, no cable clutter)
Extra-long charging cable (5m)
Storage compartment for carrying the charging cable and space for gloves/tools, etc.
Tipping skip made of solid 3mm sheet steel
Robust frame, therefore more stable than similar devices
4x sturdy lashing eyes
Adjustable track width as standard
Operating hours counter/battery charge indicator as standard
Foldable riding platform as standard
Large battery capacity - long operating time (8-10 hours) - depending on load
Charging time from 0-100% in 7-8 hours
Empty weight of 318 kg with tipping skip demonstrates the most stable construction in this class, unlike similar devices.

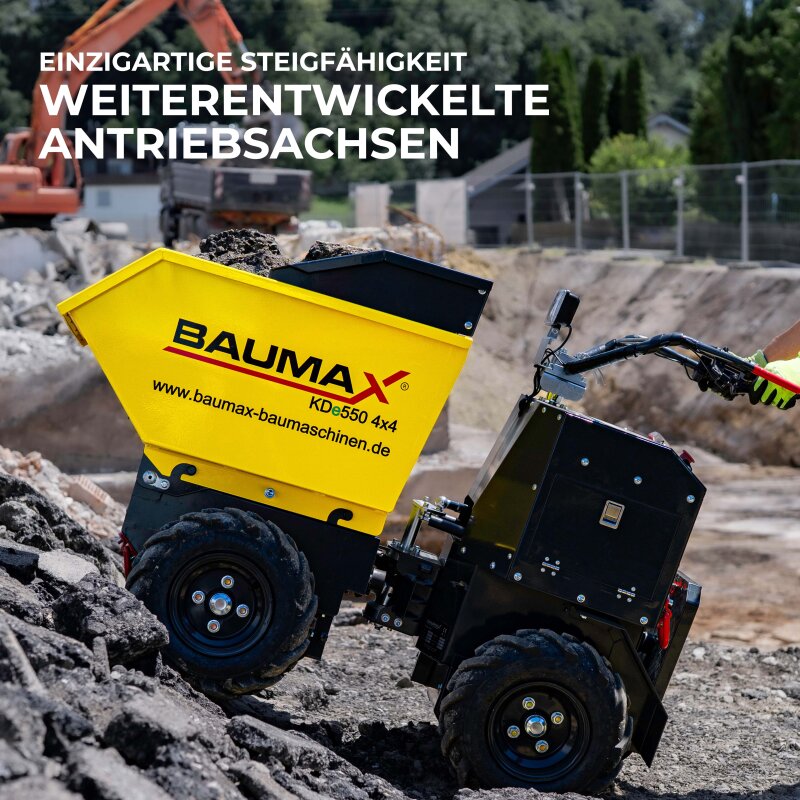

Unique climbing ability and immense pulling power through the use of advanced drive axles with a modified gear ratio, resulting in significantly higher torque than standard devices.
This also achieves significantly higher braking force on the electromagnetic brakes. This provides perfect braking even at full load on maximum inclines. In addition, brake wear is reduced to a minimum. Extra large payload capacity (550kg) thanks to stronger axles and thicker materials.
Drive: 2 x 1000W, 48V DC (all-wheel drive)
Operating time per battery charge: 8-10 hours
Battery: 48V/40Ah AGM battery (4 x 12V)
Lighting: 1 x LED front headlight, 1 x top headlight
Weight (kg): 318

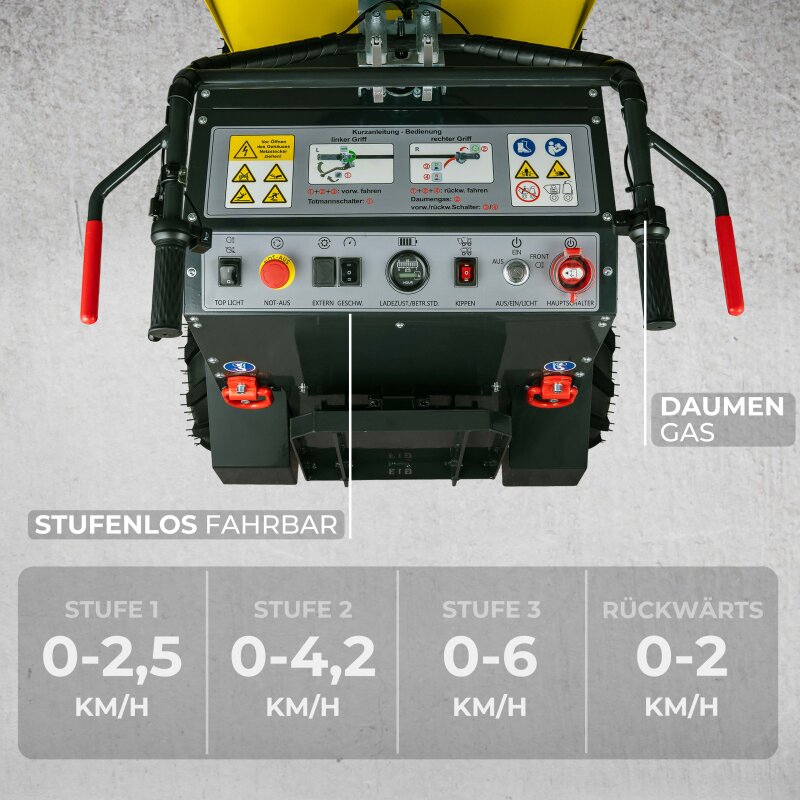

Driving speed: 0-5 km/h, continuously variable via thumb throttle, selectable in three stages
Reverse speed: 0-2.0 km/h, continuously variable via thumb throttle
Tipping mechanism: electro-hydraulic
Tipping angle of the skip: 110°
Charger: Integrated charger
Charging cable: CEE socket/Schuko plug with 5m rubber cable, stored on the machine
Material thickness of the skip: 3mm (sheet steel)
Dimensions LxWxH (mm): 1620x775x1169
Payload (kg): 550
Maximum climbing ability (*): 30°

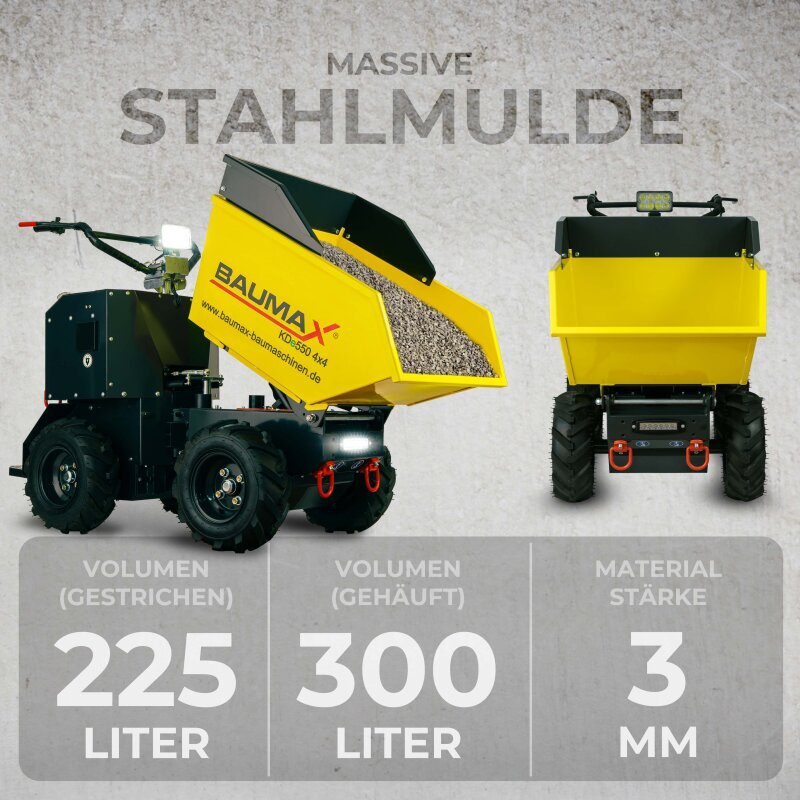

Volume of the skip (heaped): approx. 300 liters
Volume of the skip (level): 225 liters
Four-wheeled dump truck
Maximum payload: 800 kg
Empty weight: 450 kg
Stakes for timber transport included as standard
Electric start included as standard
Brake: Automatic drum brake
Empty weight (kg): 450
Transmission: 6 forward gears, 2 reverse gears (switchable in 2 groups)
Displacement: 420 cm³
Tipping mechanism: Hydraulic
Fuel: Premium unleaded gasoline 95 (E5)
Power: 9.1 kW / 3600 rpm
Dimensions LxWxH (mm): 2130x800x1260 mm (Length with riding platform down: 2350 mm)
Engine: Loncin G420FD
Payload (kg): 800
Maximum gradient (*): 30° (57.7%)
Fuel tank capacity: 6.5 L
Skip capacity (struck / heaped): 305 l / 400 l
Ground pressure empty per cm²: 0.13 kg/cm²
Ground pressure at maximum payload per cm²: 0.35 kg/cm²
Control panel / engine cover: Enclosed on three sides
Width without side panels: 750 mm
Internal dimensions of the tipping platform LxWxH: 1310x640x360 mm
Front panel: Automatically opens during tipping, removable
Side panels: Foldable – all panels are removable
Riding platform: Standard
Electric start: Standard
Hour meter including tachometer: Standard
Stakes for wood transport: Standard
Oscillating roller chassis: Standard
LED headlights: Standard
Lashing eyes on chassis and platform: Standard
Mounting option for front attachments: Standard
